Interior NVIS/NVG Cabin Lighting Systems

DeVore’s New line of NVIS/NVG compatible LED interior cabin lighting systems consist of a General Cockpit Light, Single or Dual main cabin lights with fully dimming controller, Fully dimming cockpit utility light. All lights have been Mil tested to Mil-S-810 and Mil-S-461. DeVore also has a full line of digital DC/DC converters ranging from 100 watts to 400 watts with multible channel outputs so to be able to control either Incandescent, Halogen, and LED lights on your forward overhead or center consoles.

Spec Sheet

88033001-1 Map / Utility LightLED

  • NVIS White per MIL-STD3009.
  • Fully dimmable from the detent off to 100% intensity.
  • Light intensity: 30 ft candles min to 60 ft candles max at 1 meter per MIL-L-6503.
  • Operates at 18-32 VDC and .5 amps max (28vdc)
  • Weight is 1.1lb and mounts per MS17246-1.The map light can be configured with any lens.
  • Visible clear, yellow, blue, red or NVIS green A or B.

Spec Sheet

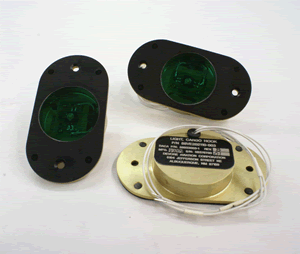

88033003-1 Interior Cabin NVG Light LED

  • Designed for work stations, crew stations, disembarking and cargo hook lighting
  • NVIS White per MIL-STD3009.
  • Light intensity: 0.2 ft candles min to .5 ft candles max at 1 meter per MIL-L-6503H
  • Operates at 28VDC and .2 amps max.
  • This light can be configured with any lens. Visible clear, yellow, blue, red or NVIS green A or B
  • Use with Power Supply: 88033010-1B

Spec Sheet

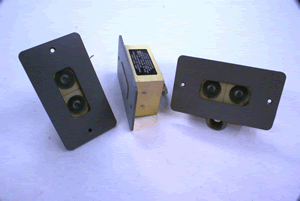

88033004-1 Troop, Cargo, Medical Crew/Patient compartment.

  • Dual LED
  • NVIS White per MIL-STD3009
  • Fully dimmable with dimming unit.
  • Can be installed in series or parallel.
  • 28VDC   .4 amps max
  • Weight .6 kg
  • Light intensity: 30-60 ft candles at 1 meter per MIL-L-6503H.
  • All housings are electro conductive to chassis (ground).
  • This light can be configured with any lens. Visible clear, yellow, blue, red or NVIS green A or B.
  • Use with Power Supply:88033010-1

Spec Sheet

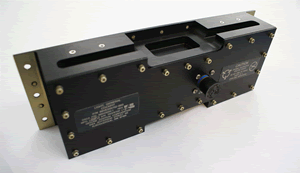

88033005-1 Cockpit Crew Light NVIS White per MIL-STD3009

  •  Light intensity: 30-60 ft candles at 1 meter per MIL-H-6503H.
  • Operates between 12-32 VDC at 1 amp max (28vdc)
  • Weight 1.36 kg max<
  • Single rheostat with switch fully dimmable from detent off to 100%.
  • Designed for pilot and co-pilot operations. Check list, general purpose light.
  • This light can be configured with any lens. Visible clear, yellow, blue, red or NVIS green A or B.

Spec Sheet

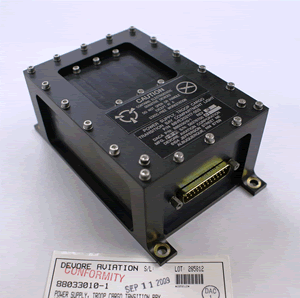

8033010-1 Power Supply, Troop Cargo Lights

This power supply provides power and dimming functionality to the 88033004-1 lights in the Troop / Cargo Compartment and/or to the 88033003-1 Cargo Hook / Crew Station light assemblies. The lighting system consisting of the Power Supply and all Light Assemblies powered by it are operated by a potentiometer located in the Troop / Cargo Compartment and allows personnel to turn the light assemblies on, off and dim as necessary. Input Power: 28 Vdc

Spec Sheet

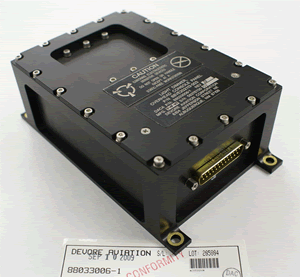

88033006-1 OVERHEAD CONSOLE INSTRUMENT PANEL DIMMER

This OCIPD unit is a power supply for EMI filtered 5 VDC and 28/12 VDC power and dimming functionality for illumination of incandescent backlighting loads (Applications). Operated by one two position toggle switch for On/Off. The dimmer’s 5V dimming function is controlled with the use of a 1K Ohm - 1 Watt potentiometer or equivalent device for dimming of the panel backlighting. The potentiometer is not included and must be supplied by the installer or a custom solution provided by DeVore Aviation.

Dimensions: 6.73L x 4.00W x 2.38H
Weight: 3.5lbs max
Input Power: 28Vdc, 3.15A
Output Power: : 0-5V, 5.57A ; 28VDC, .26A.
Connector: M24308/24-3F 25 pin


Spec Sheet

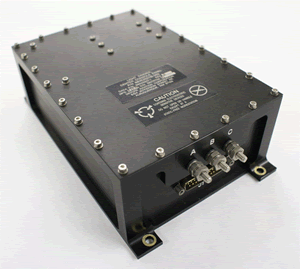

88033007-1 CENTER CONSOLE INSTRUMENT PANEL


The CCIPD unit is a power supply that supplies EMI filtered 5 VDC power and dimming functionality for illumination of 5V Light Emitting Diodes (LED’s), 5V Incandescent and 28/12V LED backlighting loads (Applications). Operated by a single 2 position toggle switch for unit On/Off power.  The dimmer’s 5V dimming function is controlled with the use of a 1K Ohm/1W potentiometer or equivalent device for dimming of the LED and Incandescent panel backlighting. The potentiometer is not provided and must be supplied by the installer.
The units 28/12V dimming is controlled by a 5K Ohm - 1 Watt potentiometer or equivalent device for dimming LED panel backlighting. The potentiometer is not included and must be supplied by the installer or a custom solution provided by DeVore Aviation.

Spec Sheet

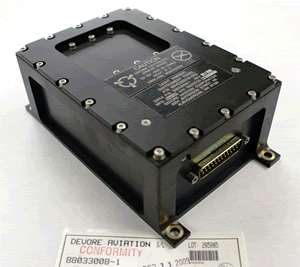

88033008-1 INSTRUMENT PANEL LIGHT DIMMER

The IPD unit is a power supply that supplies EMI filtered 5VDC power and dimming functionality for illumination of 5V Light Emitting Diodes (LED’s), 5VDC Incandescent and 28VDC backlighting loads commonly utilized in a Pilot and or Co-Pilot instrument panel backlighting application. Two individual units are required if both Pilot and Co-Pilot Instrument Panel backlighting is required.
The dimmer is operated with a single two position toggle switch for unit ON/OFF power.
The dimmer’s 5V dimming function is controlled with the use of a 1K Ohm 1W potentiometer or equivalent device for dimming of the LED and Incandescent panel backlighting. (not supplied) The units 28V dimming is controlled through the use of a 5K Ohm potentiometer or equivalent device for dimming of the LED panel backlighting.



Dimensions: 6.73L x 4.00W x 2.38H
Weight: 3.5lbs max
Input Power: 28VDC, 1.8A
LED Output Power: 0-5VDC, 2.1A and 8VDC to 28VDC, .325A
Incandescent Output Power: 1 to 5VDC, 1.23A
Connector: M24308/24-3F  25 pin

Spec Sheet

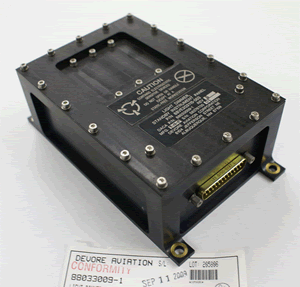

88033009-1 STANDBY INSTRUMENT PANEL DIMMER

The SIPLD unit is a power supply that supplies EMI filtered 5VDC power and dimming functionality for illumination of 5V Light Emitting Diodes (LED’s) and 5VDC Incandescent backlighting loads. The dimmer 5V power and dimming is controlled through the use of a single rotary control switch or equivalent device allowing the operator to control unit ON/OFF and MIN/MAX dimming. The rotary control switch must be supplied by the installer or a custom solution can be provided by DeVore Aviation.

Dimensions: 6.73L x 4.00W x 2.38H
Weight: 3.5lbs max
Input Power: 28 VDC, 1.1A
LED Output Power: 0-5VDC, 1.56A
Incandescent Output Power: 0 to 5VDC, 2.25A
Connector: M24308/24-3F
